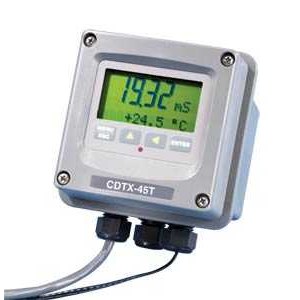

OMEGA Toroidal Conductivity System CDTX-45T

• Loop-Powered, AC, or Battery Versions • Dual Alarm Relays/ Analog Outputs • Large, 2-Line Display MONITOR PERFORMANCE SPECIFICATIONS Measuring Range: Main Input: 0 µ S to 2000 mS, mg/ L total dissolved solids; loop current 4 to 20 mA Sensor Temperature: -10 to 210º C ( 14 to 410º F) Main Parameter Ranges: 0 to 2000 µ S, 0 to 2 mS, 0 to 20 mS, 0 to 200 mS, 0 to 2000 mS, 0 to 2 S Repeatability: 0.3% of span or 0.1 µ S, whichever is greater Sensitivity: 0.05% of span or 0.1 µ S, whichever is greater Non-Linearity: 0.3% of span or 0.1 µ S, whichever is greater Stability: 0.1% of span per 24 hr Temperature Drift: Span or zero, 0.03% of span/ º C Warm-Up Time: 7 s to rated performance Response Time: 6 s to 90% of step input at lowest setting Max Sensor-to-Analyzer Distance: 61 m ( 200' ) SENSOR SPECIFICATIONS Sensor: Toroidal electrode Wetted Materials: Noryl Sensor Cable: 6.1 m ( 20' ) standard, maximum length 61 m ( 200' ) Response Time: 2 s to 90% FS Temperature Range: 0 to 105° C ( 32 to 221° F) Pressure Limit: 150 psig Process Connection: 3/ 4 MNPT rear thread, optional 2" keyed tee fitting Temperature Element: Pt1000 RTD Minimum Conductivity: 500 µ S INSTRUMENT SPECIFICATIONS Enclosure: Materials: NEMA 4X ( IP66) polycarbonate, stainless steel hardware, weatherproof and corrosion resistant Dimensions: 112 H x 112 W x 89 mm D ( 4.4 x 4.4 x 3.5" ) Mounting Options: Wall, panel ( 115 x 115 mm) or pipe/ handrail Conduit Openings: 3 M16 openings; cord grips and conduit adaptors included Weight: Loop-Powered Transmitter: 0.45 kg ( 1 lb) Other Configurations: 0.68 kg ( 1.5 lb) Display: Large, high-contrast, super-twist ( STN) LCD 4-digit main display with sign, 19.1 mm ( 0.75" ) 7-segment characters; 12-digit alphanumeric second-line display, 7.6 mm ( 0.3" ) 5 x 7 dot matrix characters Keypad: 4-key membrane type with tactile feedback, polycarbonate with UV coating, integral EMI/ static shield and conductively coated window Ambient Temperature: Operating: -20 to 60º C ( -4 to 140º F) Storage: -30 to 70º C ( -22 to 158º F) Ambient Humidity: 0 to 95% RH, non-condensing Designed for hazardous and non-hazardous areas EMI/ RFI Influence: Designed to EN 61326-1 Output Isolation: 600 V galvanic isolation Filter: Adjustable, 0 to 9.9 minutes additional damping to 90% step input Temperature Input: Selectable Pt1000 or Pt100 RTD with automatic compensation
